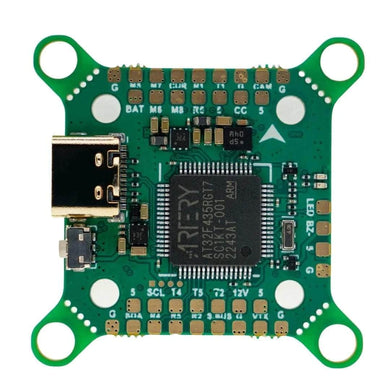

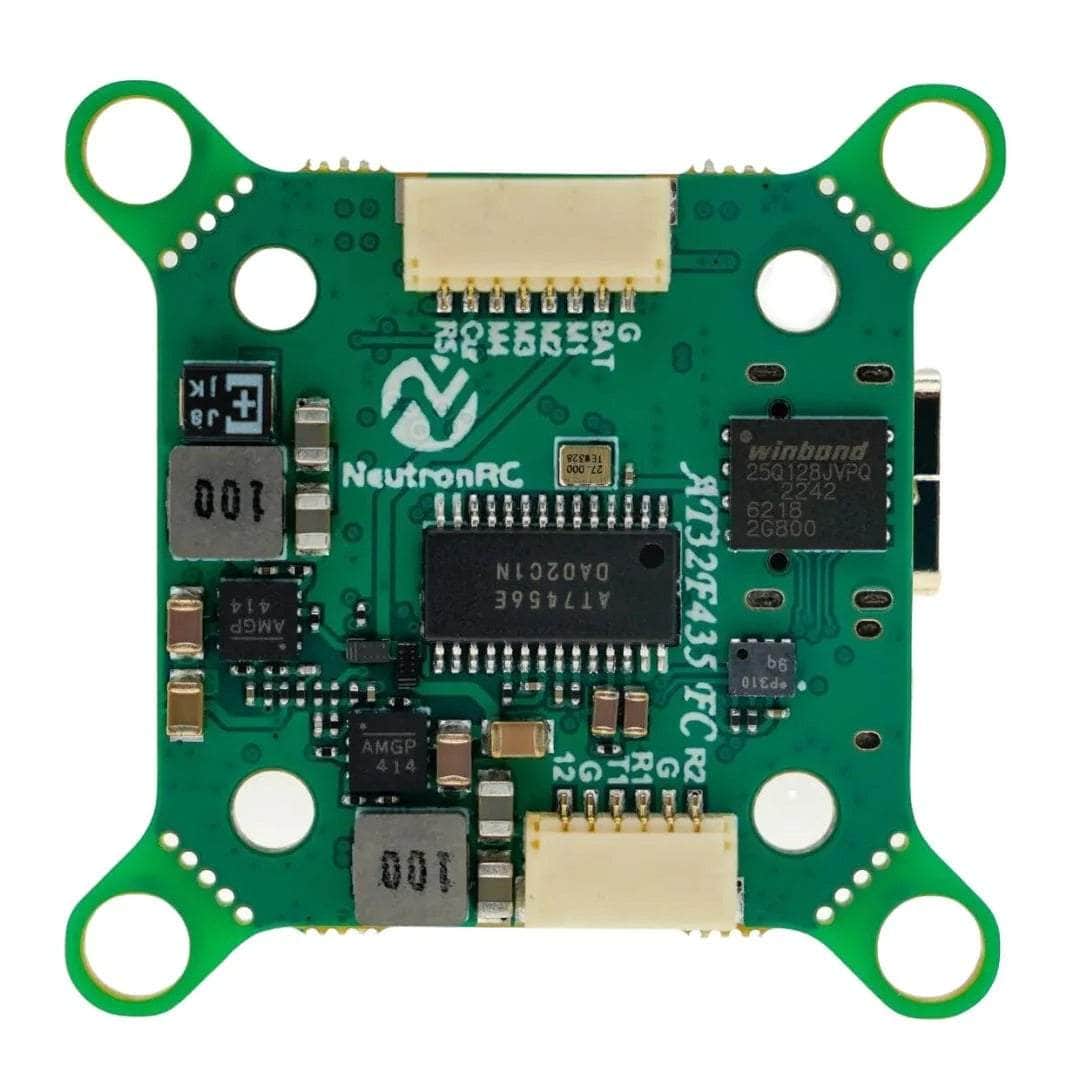

NeutronRC AT32F435 2-6S 20x20 / 30x30 Flight Controller

Features

• Advanced MCU: Uses a powerful AT32F435CGU7 MCU, boasting a speed of 288M Hz and a 1MB Flash.
• Exceptional Stability: Integrates a BMI270 gyro driver for superior gyro calibration.
• Connectivity Options: Offers five Uarts (1,2,3,5,7) and one l2C.
• High-Quality Components: Uses the FD6288 3in1 driver and an 8-layer 20Z, 2-order blind via PCB.

Specifications

• MCU: AT32F435SE
• Input voltage: 2-6S
• Mounting Size: 20x20 or 30x30
• Gyro: BMI270
• Baro: DPS310
• OSD: MAX7456
• 1x UC
• 5x Uarts  (1,2,3,5,7)
• USB Type-C
• Firmware: NEUTRONRCF435SE

Important Notes

• Latest RC Betaflight/ATBetaflight firmware could be found HERE
• Target is NEUTRONRCF435SE
• For now ONLY use betaflight configurator BETA to be found HERE
• future Betaflight 4.5.X to start support AT32 natively soon
• for ESC Conf. use web ESC Config. found HERE
• For firmware flashing, Zadig driver needs to be installed HERE
• USB Virtual Driver HERE
• CLI W BMI270 Clean build with RPM filters DSHOT300:

Includes

• 1x NeutronRC AT32F435 2-6S 20x20 / 30x30 Flight Controller
