XT60H CONNECTOR
XT60H CONNECTOR
Precio habitual
$1.00 USD
Precio habitual
Precio de oferta
$1.00 USD
Precio unitario
por
No se pudo cargar la disponibilidad de retiro

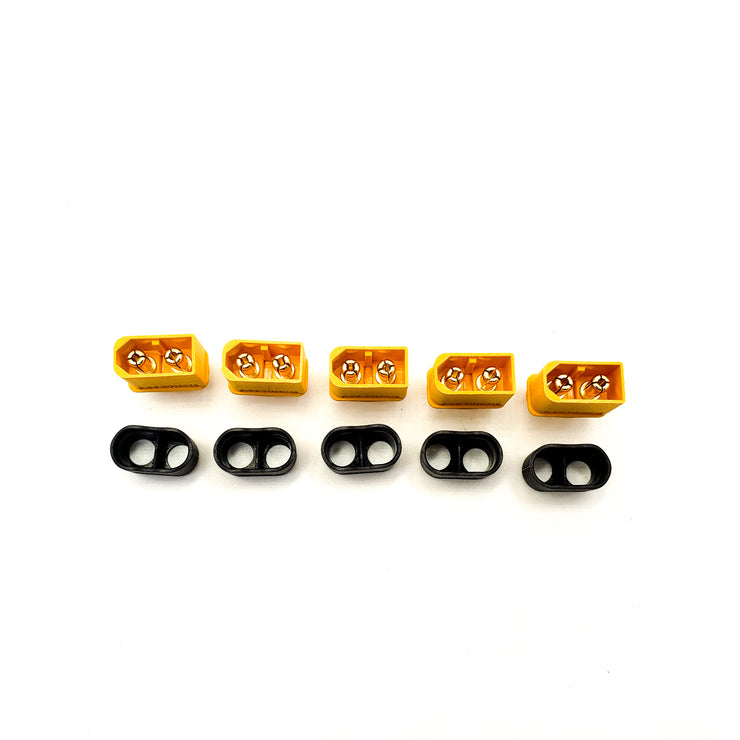

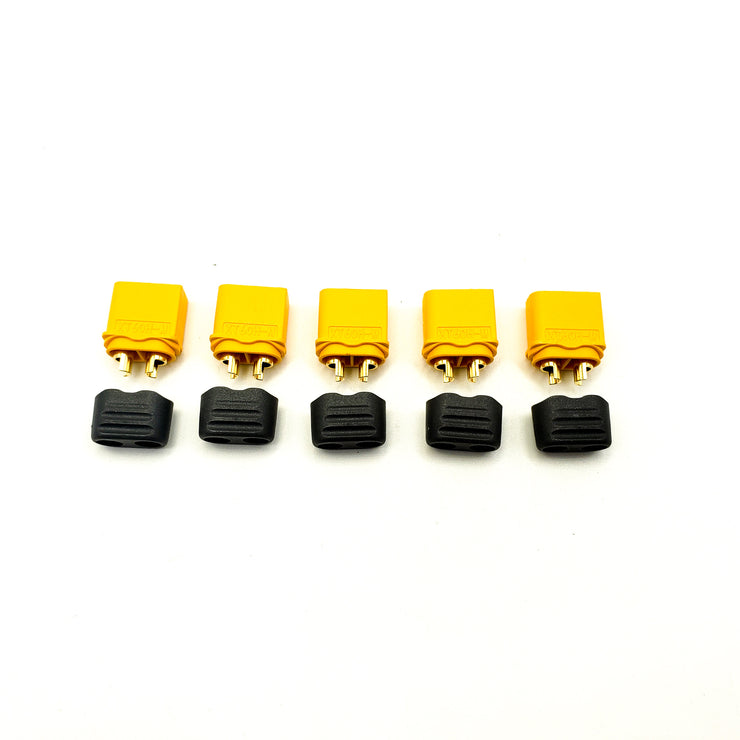

XT60H are an upgraded XT60 connector removing the requirement for additional heat shrink.
The new added sheath protection prevents bending at the solder joint and increases reliability.
Gold plated spring connectors and high temperature nylon material provide robust connection.
Used in lipo battery connections up to 60A!
Great for any power connection, RC car, drone, airplane, automotive, speakers.
Easy to solder!
Specifications:
Brand Name: Amass
Item Name: XT60H
Body Material: gold-plated copper
Internal Material: Nylon/PA
Internal Resistance: 0.8mΩ
Max. RC/MC: 60A/100A
Weight: 7.72g/pcs
Pulling Force/600: 3kg
Temperature Resistance: -20°C~120°C
Recommend Use: 1000 times
Recommend Cable Spec.: 12AWG
Recommend Soldering Spec.: 480°C/4S
